Quintic Ball Roll Putting Analysis System

Marking the beginning of a new era for Quintic, the new Quintic Ball Roll Indoor System utilises infrared lighting (not visible to the human eye), and a high-speed camera (1080 frames per second) to accurately track both the putter and golf ball throughout the impact zone of either a right or left-handed golfer. The system automatically measures over 60 parameters and instantly displays results graphically and numerically - ready for immediate analysis, review and intervention! With its unparalleled accuracy, the QBR System provides golfers of all levels and abilities the essential metrics to understand their putter mechanics and ball performance throughout the impact zone.

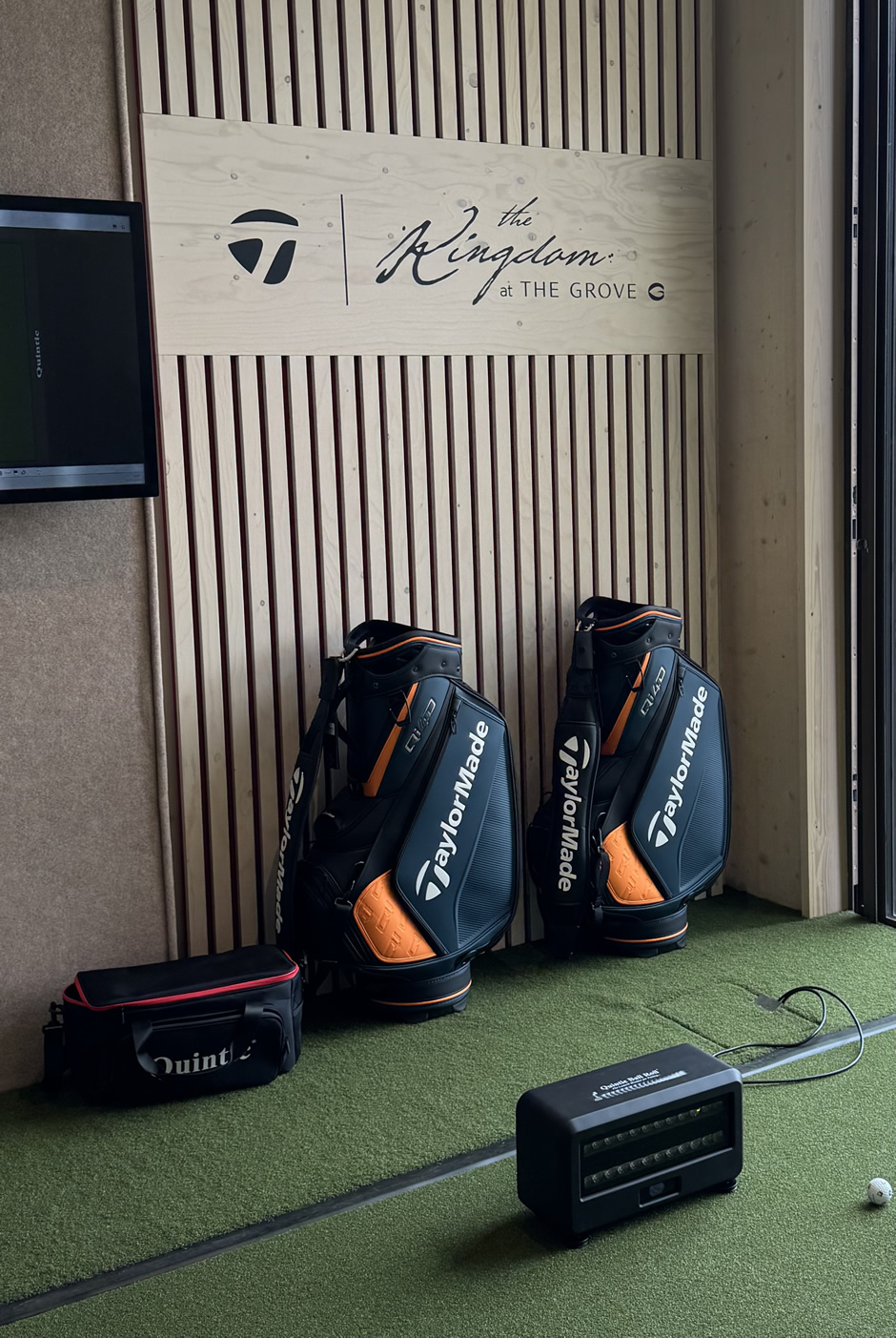

All the hardware for the NEW QBR Indoor System is housed in a compact box (W40cm, H20cm, D17cm / W16”, H8”, D7”), making it easier than ever to integrate the latest QBR technology in your facility, whilst enhancing portability and ease of calibration. Please see the System Requirements for more details.

Quintic Ball Roll has established itself as the go-to launch monitor for putting around the world, used by leading putter manufacturers, coaches, players, educational and governing bodies.



Each system includes the latest Quintic Ball Roll software and all the hardware a client requires and comprehensive user support is provided via the Quintic Ball Roll Accreditation Programme. Every system can be used easily indoor (minimum 3 meters by 4 metres required) or outdoors on any smooth putting surface. Quintic is used worldwide for golf instruction, club fitting and club recommendation as well as for research and development. A large number of golf retail stores around the world use the Quintic Ball Roll System to offer superior custom putter fittings.

Teaching professionals also use the system for coaching and custom putter fitting - not just from a lie, loft, length perspective but also the overall weight, swing weight, grip options, alignment lines, colours and different head shapes, including blade vs. mallet, centre shaft vs. heel shaft, face balanced vs. toe heavy...

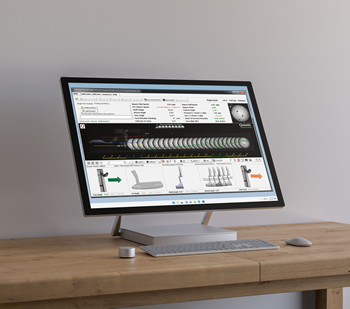

Quintic Ball Roll is also used as a golf training aid for personal practice by tour professionals and amateur golfers alike. Quintic is very simple to use, providing tangible results instantly for the player. Quintic is simple to calibrate and set-up... upon hitting a putt, as soon as the ball leaves the capture areas all the required information appears instantly on screen. It's that simple! Quintic measures the effect of impact dynamics on the performance of the golf ball and club, which at the end of the day is what truly matters...

  • What causes the golf ball to leave the putter face with too much loft?
  • Is it the attack angle, shaft angle or too much static loft on the club at address or even a change in dynamic lie angle?
  • What effect does the club head rotation have on start direction, side spin, ball rotation?
  • What is the effect of an off centre strike on ball performance, how much does a putter twist at impact?

The Quintic Ball Roll examples below help explain how the software can be used for club fitting, coaching and research and development.
